彼得曼32.768K有源晶振的優勢

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2023-12-28 14:44:13【大中小】

分享到：

彼得曼32.768K有源晶振的優勢，Time requirements in modern metering applications have massively increased in the last few years. The usual requirement in modern metering applications is a time offset of 1 hour after 7 years. It should also be possible for the operating temperature range of the application to comply with this value. 1 hour max. after 7 years corresponds to a frequency tolerance of ±16 ppm absolute at 32,768 kHz. It is no longer possible for conventional 32,768 kHz oscillating crystals to meet these requirements.

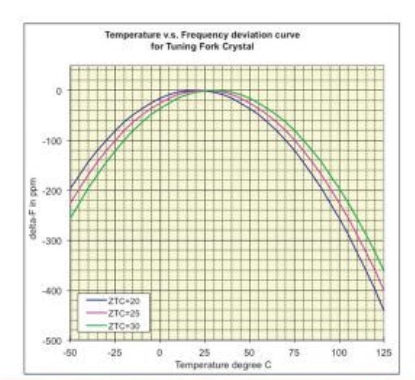

On the one hand, this is because 32,768 kHz are only available with a frequency tolerance of ±10ppm at +25°C, on the other hand, the temperature stability over a temperature range of -40/+85°C is more then -180 ppm. Moreover, ageing of approx. ±30 ppm after 10 years must be taken into account when calculating accuracy. In the worst case, a 32,768 kHz crystal has a maximum frequency stability of +40/-220 ppm (including adjustment at +25°C, temperature stability and ageing after 10 years). External circuit capacitance must be able to compensate any systematic frequency offset caused by the internal capacitance of the oscillator stage of the IC to be synchronised and by stray capacitance. The selection of a layout without external circuit capacitance for the 32,768 crystal involves a great risk because the accuracy of the 32,768 crystal can neither be corrected nor adjusted to suddenly changing PCB conditions during series production. Initially, the intersection angle for the 32,768 crystal was designed for optimal accuracy in wristwatches, and not for most of the applications for which it is used nowadays.

In order to meet the highly accurate time requirements, we as a clocking specialist offer the series ULPPO ultra low power 32,768 kHz oscillator. This oscillator can be operated with each voltage within a VDD range of 1.5 to 3.63 VDC. The specified current consumption is 0.99 µA. The temperature stability of ULPPOs is ±5 ppm over a temperature range of -40/+85°C. Frequency stability (delivery accuracy plus temperature stability) is ±10 ppm, and ageing after 20 years is ±2 ppm. Thus the maximum overall stability of ULPPOs is ±12 ppm including the ageing after 10 years. These are industry best parameters.

No external circuit capacitance is required for the circuiting of the ultra small housing (housing area: 1.2 mm2). The input stage of the IC installed in the ULPPO independently filters the supply voltage. Compared to crystals, ULPPOs save a lot of space on the printed circuit board so that the packing density can be increased, and smaller printed circuit boards can be designed. The adjustment of the amplitude further reduces the power consumption of the ULPPO.

For space calculations, both external circuit capacitances for a crystal on the printed circuit board must also be taken into account. With its two external circuit capacitances, even the smallest 32,768 kHz crystal requires more space on the PCB than ULPPOs do.

Moreover, very small 32,768 kHz crystals have very high resistances which usually cannot be safely overcome by the oscillator stages to be synchronised because the oscillator stages of the ICs or RTCs to be synchronised have very high tolerances as well. Therefore, sudden response time problems in the field might occur which can be ruled out with ULPPOs. Thus, the safe operation of the application is possible with ULPPOs under all circumstances.

Oscillator stages consume a lot of energy to keep a 32,768 crystal oscillating. Usually, the input stage of the MCU can be directly circuited with the LVCMOS signal of the ULPPO (usually Xin). Thus the input stage of the MCU can be deactivated (bypass function) so that the energy saved can be used for the calculation of the system power consumption of the meter. Moreover, ULPPOs are able to synchronise several ICs at a time. Due to the very high accuracy of the ULPPO, less time synchronisations are required, which also saves system power.

Of course, ULPPOs can be used in any applications which require miniaturised ultra low power 32,768 kHz oscillators such as smartphones, tablets, GPS, fitness watches, health and wellness applications, wireless keyboards, timing systems, timing applications, wearables, IoT, home automation, etc. Due to the high degree of accuracy of 32,768 kHz oscillators, the standby time or even the hypernation time in hypernation technology applications can be significantly increased so that a high amount of system power can be saved due to the significantly lower battery-intensive synchronisation cycles. Thus the 32,768 kHz oscillator is the better choice compared to 32,768 kHz crystals. Ultra low power 32,768 kHz oscillators are available with diverse accuracy variations – see also the ULPO-RB1 and -RB2 series.

不斷精進自我的優質制造商彼得曼公司，致力于開發大量高質量的產品，隨著近幾年來，現代計量應用的時間要求大幅提高?，F(xiàn)代計量應用的通常要求是7年后時間偏移1小時。應用的工作溫度范圍也應符合該值。最多1小時。7年后對應于32，768kHz下16ppm絕對值的頻率容差。傳統的32，768 kHz振蕩晶體不再可能滿足這些要求。彼得曼32.768K有源晶振的優勢.

一方面，這是因?yàn)?2，768kHz僅在+25°C時具有10ppm的頻率容差，另一方面，在-40/+85°C溫度范圍內的溫度穩定性高于-180ppm。此外，老化約。計算精度時，必須考慮10年后的30ppm。最差情況下，32.768K有源晶振的最大頻率穩定性為+40/-220 ppm(包括+25°C時的調整、溫度穩定性和10年后的老化)。外部電路電容必須能夠補償由要同步的ic振蕩器級的內部電容和雜散電容引起的任何系統頻率偏移。為32，768晶振選擇無外部電路電容的布局包含很大的風險，因?yàn)樵谂可a(chǎn)期間，32，768晶振的精度既不能校正也不能調整以適應突然變化的PCB條件。最初，32，768英寸晶體的交叉角度是為手表的最佳精度而設計的，而不是為如今使用它的大多數應用而設計的。

為了滿足高度精確的時間要求，作為計時專家，我們推出了ULPPO系列超低功耗32，768 kHz振蕩器。該石英晶體振蕩器可以在1.5到3.63 VDC的VDD范圍內的每個電壓下工作。額定功耗為0.99 A。在-40/+85°c的溫度范圍內，ULPPOs的溫度穩定性為±5 ppm。頻率穩定性(輸送精度加上溫度穩定性)為10 ppm，20年后的老化為±2 ppm。因此，ULPPOs的最大總穩定性為12 ppm，包括10年后的老化。這些是行業最佳參數。

超小型外殼的電路不需要外部電路電容(外殼面積:1.2 mm2).ULPPO中安裝的IC輸入級獨立過濾電源電壓。與晶體相比，ULPPOs節省了印刷電路板上的大量空間，因此可以增加封裝密度，并且可以設計更小的印刷電路板。幅度的調整進一步降低了ULPPO的功耗。

對于空間計算，還必須考慮印刷電路板上晶體的兩個外部電路電容。由于有兩個外部電路電容，即使最小的32，768kHz晶振也比ULPPOs需要更多的PCB空間。

此外，非常小的32，768 kHz晶體具有非常高的電阻，這通常不能被要同步的振蕩器級安全地克服，因?yàn)橐降腎C或RTC的振蕩器級也具有非常高的容差。因此，現場可能會出現突然的響應時間問題，這可以通過ULPPOs排除。因此，在任何情況下，使用ULPPOs都可以安全運行應用程序。

振蕩器級消耗大量能量來保持32，768有源晶體振蕩器。通常，MCU的輸入級可以直接與ULPPO的LVCMOS信號(通常為X在).因此，可以停用MCU的輸入級(旁路功能)，以便節省的能量可以用于計算電表的系統功耗。此外，ULPPOs能夠同時同步多個IC。由于ULPPO的精度非常高，因此需要的時間同步更少，這也節省了系統功率。

當然，ULPPOs可用于任何需要小型化超低功耗32，768 kHz振蕩器的應用，如智能手機、平板電腦、GPS、健身手表、健康和保健應用、無線鍵盤、計時系統、計時應用、可穿戴設備、物聯網、家庭自動化等。由于32，768 kHz振蕩器的高度準確性，待機時間或甚至超高技術應用中的超高時間可以顯著增加，從而由于顯著降低的電池密集型同步周期可以節省大量系統功率。因此，與32，768 kHz晶體相比，32，768 kHz振蕩器是更好的選擇。超低功耗32，768 kHz振蕩器具有不同的精度變化——也可參見ULPO-RB1和-RB2系列。
