DSB221SDN溫補振蕩器,1XXB32000PAA,大真空GPS定位晶振，尺寸2.5x2.0mm，頻率32MHZ，日本KDS晶振，大真空石英晶振，貼片晶體振蕩器，有源貼片晶振，有源晶體振蕩器，2520mm有源晶振，進口有源晶振，石英晶體振蕩器，有源石英振蕩器，高性能有源晶振，網絡通訊設備晶振，高質量有源晶振，低抖動有源晶振，低電壓有源振蕩器，低功耗有源晶振，低耗能有源晶振，低損耗有源晶振，低相位有源振蕩器，GPS定位有源晶振，可視化智能家居有源晶振，數字視頻專用晶振，移動電話專用有源晶振，儀器儀表有源晶振，測試測量專用有源晶振，游戲設備有源晶振，具有高性能低電壓的特點。
TCXO晶振產品很適合用于GPS定位，可視化智能家居，數字視頻，無線通信，移動電話，儀器儀表，測試測量專，游戲設備，移動電話、GNSS、工業無線通信設備等領域。DSB221SDN溫補振蕩器,1XXB32000PAA,大真空GPS定位晶振.

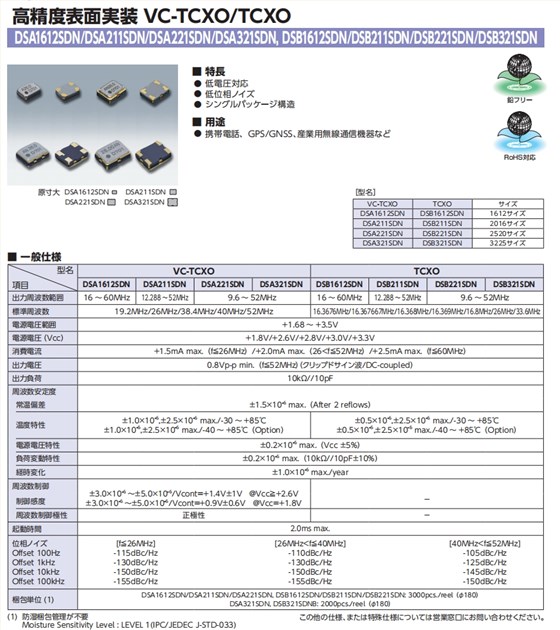

DSB221SDN溫補振蕩器,1XXB32000PAA,大真空GPS定位晶振 參數表
| 型號名稱 | DSB221SDN (TCXO ) | |||
|---|---|---|---|---|
| 輸出頻率范圍 | 32MHz | |||
| 標準頻率 | 16.3676 MHz/16.367667 MHz/16.368 MHz/16.369 MHz/16.8 MHz/26 MHz/33.6 MHz | |||
| 電源電壓范圍 | +1.68?+3.5V | |||
| 電源電壓( Vcc ) | +1.8V/+2.6V/+2.8V/+3.0V/+3.3V | |||
| 消耗電流 |
+1.5mA max.(f≦26MHz )/+2.0mA max.(26 |
|||
| 輸出電壓 | 0.8Vp-p min.(f≦52MHz ) (削波正弦波/DC-coupled ) | |||
| 輸出負載 | 10kΩ//10pF | |||
| 頻率穩定度 | 常溫偏差 | ±1.5×10-6max.(After 2 reflows ) | ||
| 溫度特性 |
±0.5×10-6±2.5×10-6max./-30~+85℃ ±0.5×10-6±2.5×10-6max./-40~+85℃(Option ) |
|||
| 電源電壓特性 | ±0.2×10-6max.(V抄送±5% ) | |||
| 負荷變動特性 | ±0.2×10-6max.(10kΩ//10pF±10% ) | |||
| 經時變化 | ±1.0×10-6max./year | |||
| 頻率控制 | 控制靈敏度 | - | ||
| 頻率控制極性 | - | |||
| 啟動時間 | 2.0ms max.。 | |||
|
相位噪聲 Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[26MHz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[40MHz -125dBc/Hz -145dBc/Hz -150dBc/Hz |
|
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||

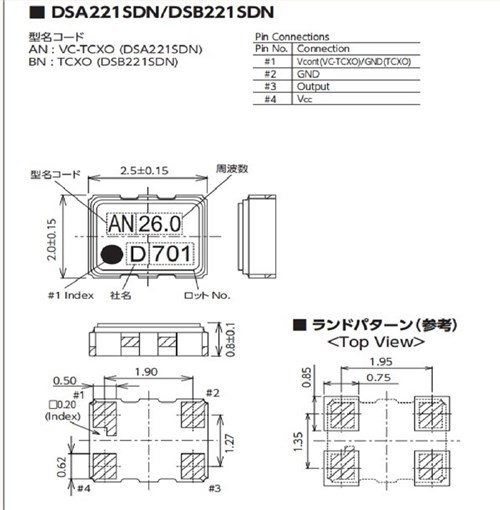

DSB221SDN溫補振蕩器,1XXB32000PAA,大真空GPS定位晶振 尺寸圖

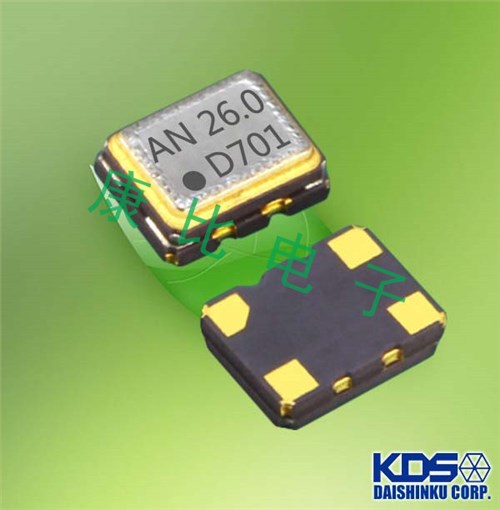

DSB221SDN溫補振蕩器,1XXB32000PAA,大真空GPS定位晶振
有源晶振產品特性：
低電壓對應
低相位噪聲
單封裝結構
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | ||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | ||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | ||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | ||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | ||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | ||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | ||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | ||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | ||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | ||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | ||
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | ||
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | ||
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V | |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | ||
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V | 0.5PPM |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | ||
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V | 1.5ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V | 2.5ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V | 100ppm |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304M | 3.3V | 50ppm |
| KDS晶振 | 1XTW38400MAA | DSB321SDN | 3225 | 38.400M | ||
| KDS晶振 | 1XTV21700PAA | DSA321SDN | 3225 | 21.7M | ||
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04M | 3.3V | 1.5ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192M | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000M | 3.3V | 40ppm |
| KDS晶振 | 1XVD030240VA | DSV321SV | 3225 | 30.240M | 3.3V | 50ppm |
| KDS晶振 | 1XVD051993VB | DSV321SV | 3225 | 51.993652M | 3.3V | 50ppm |
| KDS晶振 | 1XVD059928VA | DSV321SV | 3225 | 59.9285M | 3.3V | 50ppm |
| KDS晶振 | 1D73375GR1 | DSF633SDF | 6035 | 73.35M | ||
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400M | ||
| KDS晶振 | 1D21430FQ4 | DSF753SCF | 7050 | 21.4M | ||
| KDS晶振 | 1D44818GQ1 | DSF753SBF | 7050 | 44.85M | ||
| KDS晶振 | 1D49915GQ24 | DSF753SDF | 7050 | 49.95M | ||
| KDS晶振 | 1D51610GQ1 | DSF753SBF | 7050 | 51.65M | ||
| KDS晶振 | CSTLS8M00G53-B0 | CSTLS | 9060 | 8.000M | 15PF | 0.50% |
| KDS晶振 | CSTLS4M00G53-B0 | CSTLS | 9060 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTNE8M00G520000R0 | CSTNE | 3213 | 8.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE8M00G550000R0 | CSTNE | 3213 | 8.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE10M00G520000R0 | CSTNE | 3213 | 10.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE10M00G550000R0 | CSTNE | 3213 | 10.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE12M0G550000R0 | CSTNE | 3213 | 12.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE16M0V53-R0 | CSTNE | 3213 | 16.000M | 15PF | 0.50% |
| KDS晶振 | XRCGB24M00F0L00R0 | XRCGB | 3225 | 24.000M | ||
| KDS晶振 | CSTCR4M00G53-R0 | CSTCR | 4520 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTCC3M58G53-R0 | CSTCC | 7234 | 3.58M | 15PF | 0.50% |
| KDS晶振 | CSTCC4M00G53-R0 | CSTCC | 7234 | 4.000M | ||
| KDS晶振 | Q-SC20S0322070AAAF | SC-20S | 2012 | 32.768K | 7PF | 20PPM |
| KDS晶振 | X1A000061000500 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000200 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000800 | FC-12M | 2012 | 32.768K | 9PF | 20PPM |
| KDS晶振 | STD-MUB-1 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | EXS00A-MU01289 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | Q13FC1350004900 | FC-135 | 3215 | 32.768K | 6PF | 20PPM |
| KDS晶振 | Q-SC32S0322070AAAF | SC-32S | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | Q-SC32SC3220C5AAAF | SC-32S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000200 | FC-135 | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | ETST00327000LE | ETST | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | CM315D32768DZFT | CM315D | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | EXS00A-MU00503 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | STD-MUS-2 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | A7EA327A | TFX-02S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000400 | FC-135 | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM51932768DZFT | CM519 | 5020 | 32.768K | 12.5PF | 20PPM |
